This magnetic tape laying machine can be designed for the PVC sheet, PVC reel film, or paper. Also can do sheet to sheet, reel to sheet, reel to reel.
Product Overview:
Our automatic magnetic tape laying machine is typically designed for laying magnetic strips onto film or card sheet materials. The pressure and heat are used in magnetic tape laying process, the temperature of laying rollers is independently controlled for an optimal laying result.
Features

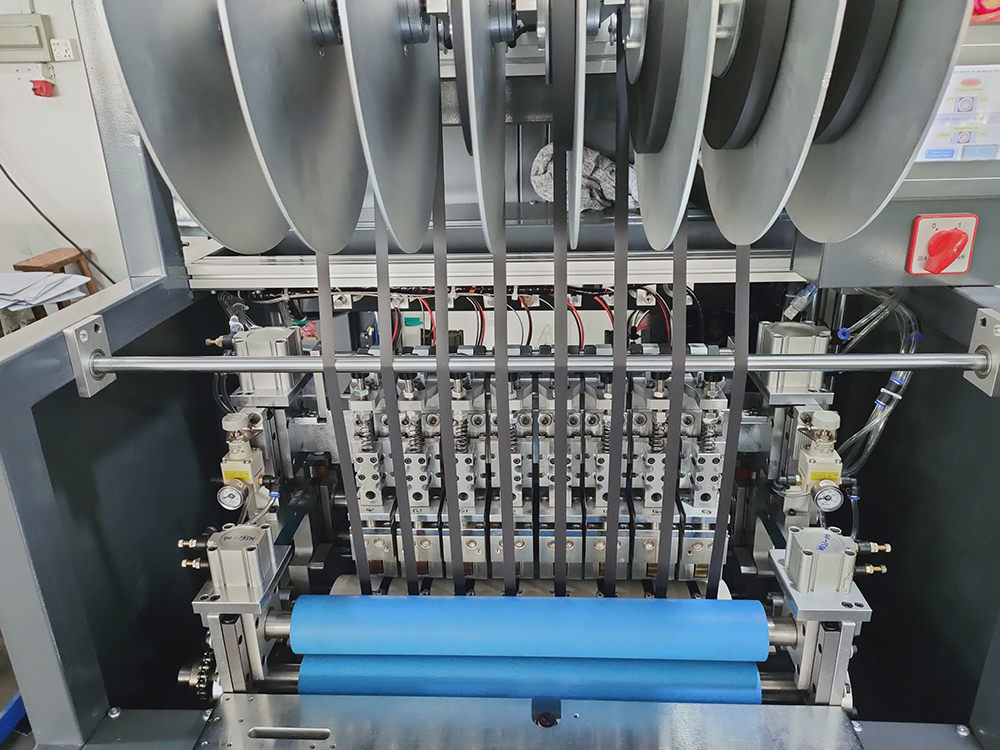

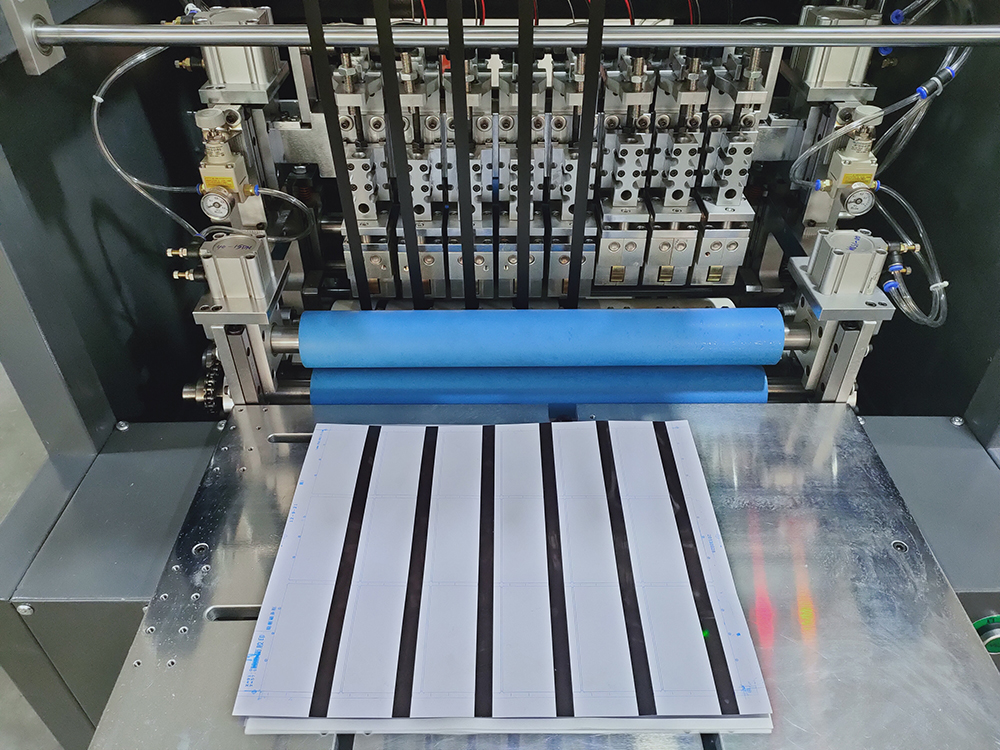

Details

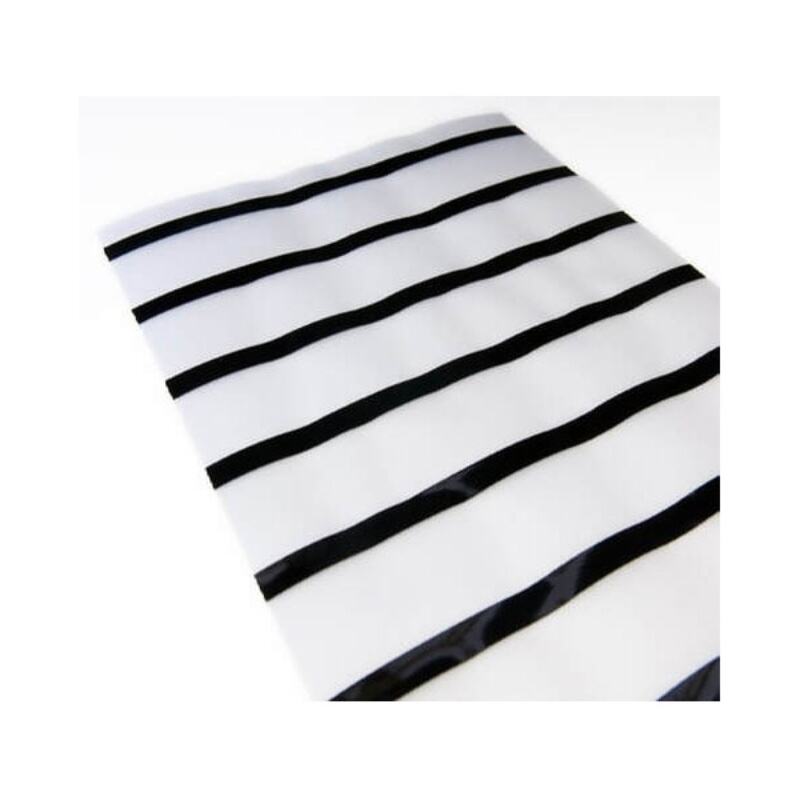

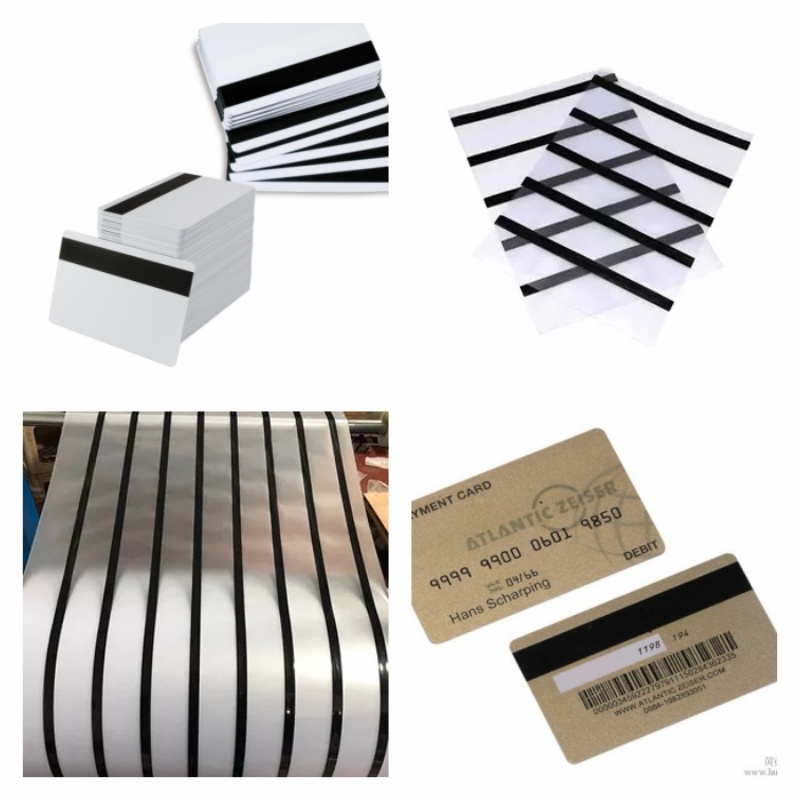

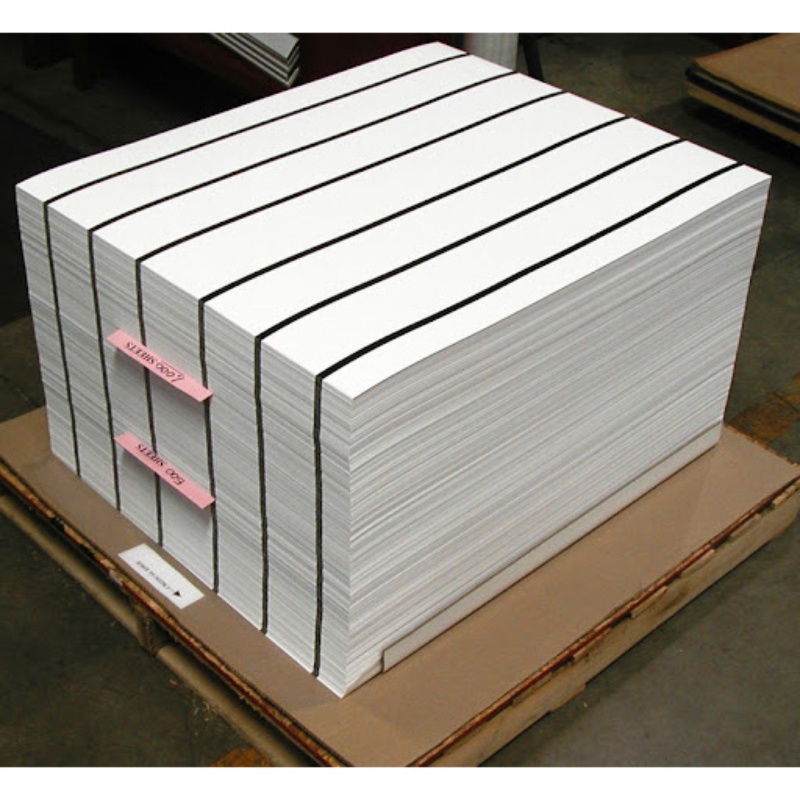

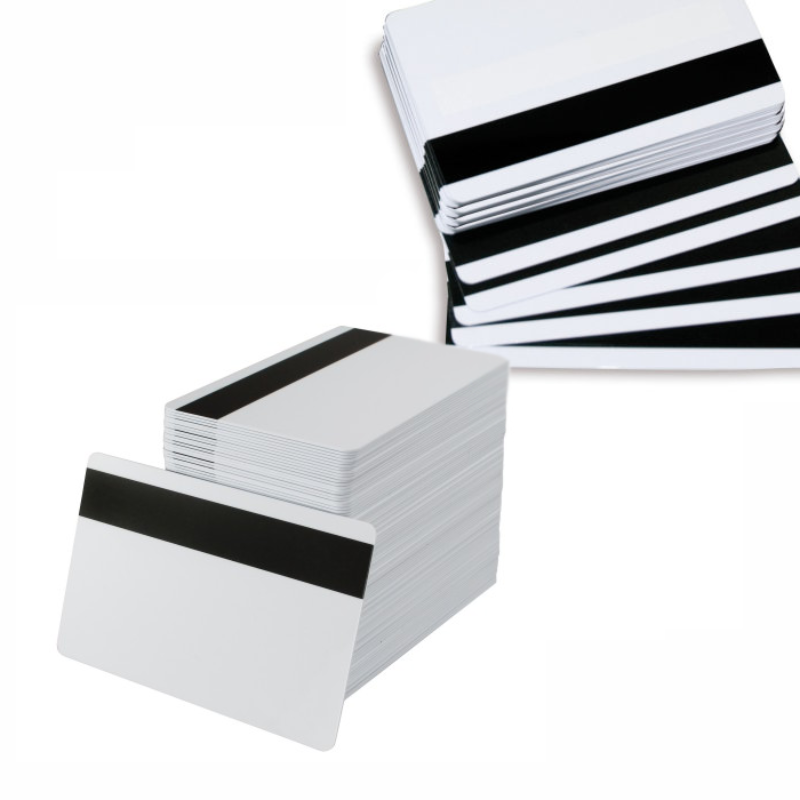

Finished Product Show
Specifications
Power supply |
AC 380V/50 HZ |
Format |
3X8/4X8/5X5 optional |
Total power |
2.5KW |
Control |
PLC control + servo system |
Air source |
6 kg/cm2 |
Operators |
1 |
Air consumption |
Approx. 80L/min |
Dimension |
L2250*W1300*H1900MM |
Laying accuracy |
±0.15mm |
Product thickness |
0.2mm~0.8mm |
Temperature control accuracy |
±2℃ |
Temperature control range |
0~400℃ |
Magnetic tape width |
6.35mm/8.4mm/12.7mm |
Quantity of magnetic tapes |
3~8 |
Applicable materials |
Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
Productivity |
900 Sheet/H |
